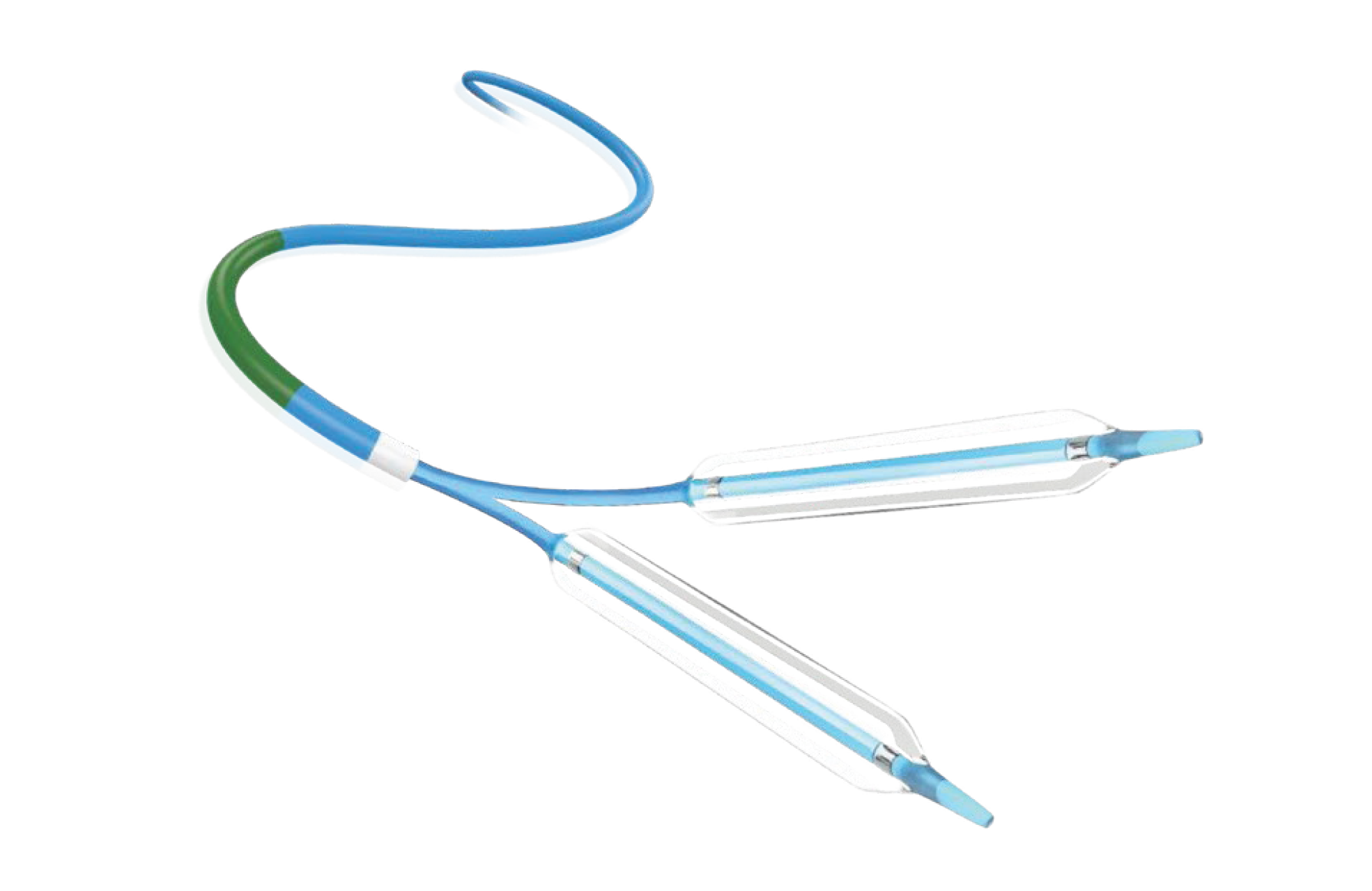

ENDO Mini Coronary Dilatation Catheter

ENDO Mini Coronary Dilatation Catheter
ENDO Mini Coronary Dilatation Catheter

Features

  • Small tip and crossing profiles ensure the better performance for CTO lesions
  • Capable for kissing balloon under 6F guiding catheter
  • Patented hydrophilic coating on distal shaft and Hypotube proximal shaft provide good deliverability.
  • Three-directional memory folding of the balloon allows of size minimization with great withdrawal capability, and ensures the good performance of repeated dilatation
  • Soft tapered tip provides smooth transition from guidewire to balloon catheter to avoid “fish mouth”, and minimize the vessel damage.
  • Short shoulder design at both ends of the balloon ensures the precise dilatation, and reduces the damage to normal vessel next to the lesion

Technical Parameters

Catheter DesignRapid Exchange
Balloon ComplianceSemi-compliant
Marker2
Distal Shaft O.D.2.7F
Proximal Shaft O.D.1.9F
Tip Profile0.017"
Minimum Guiding Catheter CompatibilityNo less than 5F (0.056")
Guide Wire Compatibility0.014"
Effective Length142cm
Nominal Pressure8 atm (2.25mm-3.0mm) / 6 atm (3.25mm-4.0mm)
Rated Burst Pressure16 atm

Ordering Information - ENDO Mini Coronary

Balloon Diameter (mm) Balloon Length (mm)
8 10 12 15 20 25 30
1.5 ENDO LPMRX 15008 ENDO LPMRX 15010 ENDO LPMRX 15012 ENDO LPMRX 15015 ENDO LPMRX 15020 ENDO LPMRX 15025 /
1.75 ENDO LPMRX 17008 ENDO LPMRX 17010 ENDO LPMRX 17012 ENDO LPMRX 17015 ENDO LPMRX 17020 ENDO LPMRX 17025 ENDO LPMRX 17030
2.0 ENDO LPMRX 20008 ENDO LPMRX 20010 ENDO LPMRX 20012 ENDO LPMRX 20015 ENDO LPMRX 20020 ENDO LPMRX 20025 ENDO LPMRX 20030
