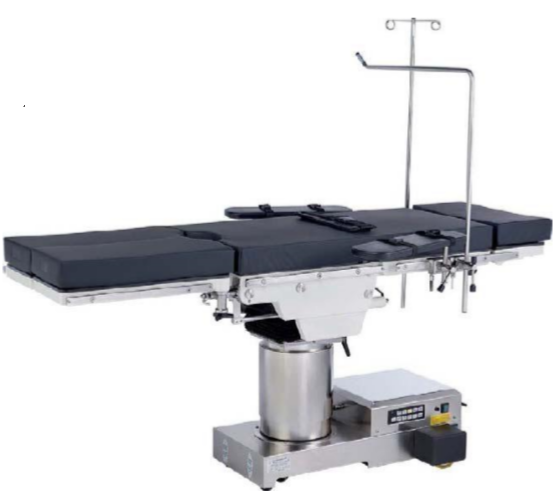

ENDO Surgical Table Electro Hydraulic ENDO 2000E is designed to accommodate different patient positions required for demanding surgical procedures, with an ultimate focus on patient and user safety. ENDO 2000E Surgical Table is constructed with stainless steel and high quality materials to provide durability and long operating life. Surgical positions of ENDO 2000E are adjusted by an electrohydraulic system. ENDO 2000E Surgical Table has up/down, sliding,Trendelenburg/reverse, right/left lateral, renal surgery, Trendelenburg and back section upward combination, and back section tabletop positions. Positions are adjusted with remote control, in a quite and nonvibrating manner at constant speed. ENDO 2000E Surgical Table is equipped with battery recharge system. Movements of the table are fed from battery circuit. Battery power of the table has a 30 minutes operating time in cases of mains failure providing approximately 30 complete position changes. The tabletop consists of four sections: head, backrest, seat and leg, each with removable, easy to clean, anti-bacterial, and waterproof 80 mm mattress for patient comfort. Easy to install radiographic tabletop kit* enables using ENDO 2000E for X-ray procedures. Sliding motion of the tabletop enables ENDO 2000E Surgical Table compatible for use with C-Arm radiological equipment. The durable cast iron table base and electrohydraulic piston is covered with stainless steel. The “T” shape design of the ENDO 2000E allows easy access to the tabletop in any position. Special brakes and anti-static casters allow ease of mobility. Stainless steel side rails accept a variety of available accessories. ENDO 2000E Surgical Table is a state-of-the-art product and with both quality and competitive pricing it is an excellent choice for todays demanding surgery theaters. (*) Optional

Technical Details

Height Adjustment

725 - 1055 mm

Height adjustment (w/mattress)

805 - 1135 mm

Tabletop

500 x 1880 mm

Table base

370 x 830

Head section

500 x 240 mm

Backrest section

500 x 490 mm

Seat section

500 x 510 mm

Right leg section

235 x 555 mm

Left leg section

235 x 555 mm

Voltage

230 V, 50Hz

Remote control voltage

DC 5 V

Motor inputs

DC 24V, 10A

Battery

2 each, DC 12V, 7Ah, maintenance free, lead acid battery

Battery recharge voltage

DC 27.2V

Battery recharge time

18h (full charge)

Low Battery Level Alarm

Sound alarm

Packing Details

Net weight

250 kg

Gross weight

295 kg

Packing dimensions

1000 x 1680 x 1100 mm

Positions

Head section

Upward 15°, Downward 90°, Extendable 5 cm, Removable

Backrest section

Upward 75°, Downward 45°, Upward 45° (w/radiographic tabletop and mattress)

Leg section

Upward 15°, Downward 90°, Spreading 90°, Removable , Independent movement

Lateral

Right 20°, Left 20°

Trendelenburg

25°

Reverse Trendelendurg

25°

Lateral nephrectomy

135°

Reflex

105°

Flex

225°

Tabletop

Rotates 355°

Horizontal tabletop sliding

250 mm
