Elmed ESWL

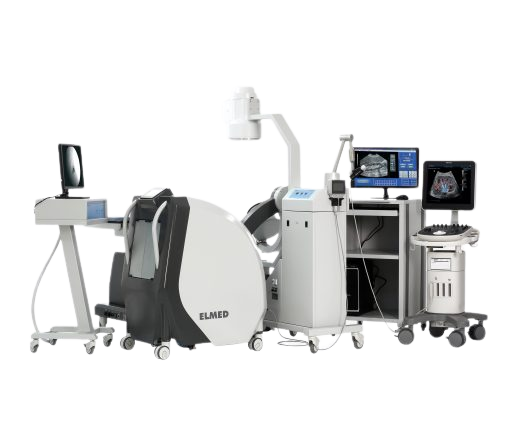

Multimed EM, presents the complete solution to the lithotripsy world. ELMED introduces compact ESWL system, with new generation electro-magnetic shock wave source, Multimed EM, equipped with the movable iso-centric shock wave head, which enables user to change shock wave head in 4 different positions without changing the focal point. Specially designed motorized urological table with radiolucent top enables to make all endourological operations under fluoroscopy. The hi-tech ultrasonic localization system with computerized articulated robotic arm provides automatically localization of kidney stones including the low density and non-opaque stones. The user-friendly touch screen hand controller enables user to control all functions of Multimed EM, Treatment Table and Lithoscope U-Arm Fluoroscopy Device.
|
Multimed EM |
|
|
Energy Source |
Eletro - Magnetic System |
|
Focusing |
Acousting Lens |
|
Patient Coupling |
Membrane (Dry Coupling) |
|
Localization |
Fluoroscopy and/or Ultrasound |
|
Focal Distance |
130 mm. (Optional upto 160 mm) |
|
Focal Dimension |
7 x 66 mm. (50 % isobar dim.) |
|
Focal Pressure |
up to 70 MPa |
|
Operating Voltage |
Max. 12 level |
|
Frequency |
variable 40 to 150 shocks/min |
|
Triggering Modes |
Automatic, ECG, Respiratory and Manuel (Op.) |
|
Water System |
Closed loop circuit with water cushion pressure regulation and 8.5 lt. water capacity with degassing |
|
Height |
1200 mm |
|
Length |
930 mm |
|
Width |
700 mm |
|
Weight |
200 kg |
|

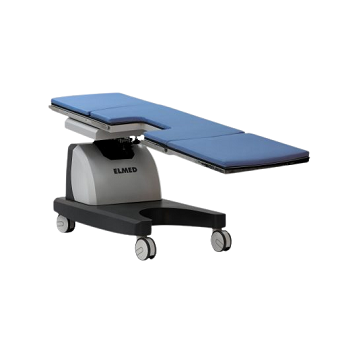

urological Table |
|
|
Height |
850 to 1150 mm |
|
Patient Surface Width |
600 x 2430 mm |
|
Weight |
155 kg |
|
Table Adjustment Limiting |
Electronically adjusment in 3-dimensions |
|
Vertical Movements |
300 mm |
|
Longidudinal Movements |
100 mm (150 mm optional) |
|
Lateral Movements |
100 mm (150 mm optional) |
|
Tilting |
Lateral & Trendelenburg (Optional) |
|
Lifting Capacity |
200 kg |
|
Lithoscope |
|
|
Power |
3.8 KW (5 KW, 18 Optional) |
|
Fluoroscopy Voltage |
40-110 KVolts (Automatic brightness control) |
|
Fluoroscopy Current |
0.2 - 3.5 mA (ABC) two main selection |
|
Image Intensifier |
9", 12" optional |
|
X - Ray Tube |
0.6-1.8 mm focal spot, (0.3-0.6 mm op.) |
|
Anode Heating Capacity |
40KHU, fixed anode tube |
|
Camera |
(Rotating Anode Optional) Hight resolution CCD Camera |
|
Monitor |
19" BW, 625/50 or 525/60 lines |
|
Height |
2010 mm |
|
Length |
1380 mm |
|
Width |
500 mm |
|
Weight |
225 kg |
|
Lithoarm |
|
|
Manipulator Type |
Revolute type Articulated arm |
|
End effector |
Ultrasound Probe Holder |
|
Kinematics Parameters |
7 links, 6 joins and 5 angles |
|
Angle Sensors |
Precision resistive angle sensor |
|
Ultrasound Device |
Adaptable with 3.5 MHz Convex transducer of any ultrasound device in the market |
|
General |
|
|
Main Supply |
230 or 115 VAC +- 10%, 50-60 Hz Single Phase |
|
The system complies with |
According to EN 60601-1 Class I, Type B According to 93/42/EEC, Class lib |
|
