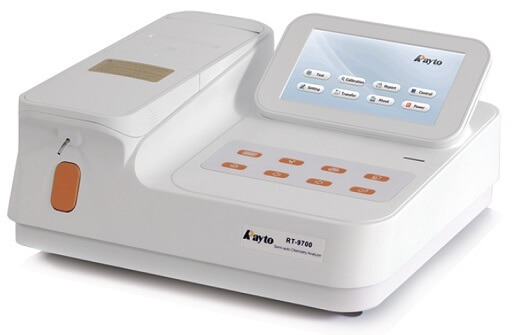

Semi Auto Chemistry Analyzer, Rayto RT-9700

Semi Auto Chemistry Analyzer, Rayto RT-9700
Semi Auto Chemistry Analyzer, Rayto RT-9700

Features :

  • 7" color LCD, touch-screen & keypad
  • Reagent open system supports flow cell and cuvette mode, close system on request
  • Analytical modes include kinetic, fixed time, bicromatic end-point with or without reagent blank or sample blank, linear or non-linear calibration
  • Real-time curve monitoring enhances the reliability of result
  • Large memory, up to 75 test protocols can be programmed
  • Powerful QC function: Westguard Multi-rule, Levey Jennings plot, 2 controls per test
  • Auto power-on self-check
  • Additional lamp saving
  • Multiform result output including patient comprehensive report

Technical Specifications :

Photometric Range :

0.000-2.500 Abs

Resolution :

0.001 Abs (displayed), 0.0001 Abs (calculated)

Light Source :

Tungsten halogen lamp, 6V/10W

Wavelengths :

340, 405, 500, 546, 578, 620, 670nm, 1 more filter optional

Aspirate Volume :

200~6000µL

Carryover :

< 1%

Memory :

75 test protocols, maximum 10000 test result

Interface :

RS-232, USB, LAN

Flow Cell :

30µL quartz flow cell

Cuvette Mode :

12.5mm*12.5mm cuvette optional

Temperature Control :

25°C, 30°C, 37°C ±0.5°C and ambient temperature

Display :

7" color LCD (800*480 pixels)

Input :

Mouse and optional external keyboard

Output :

Built-in printer or external printer (optional)

Net Weight :

6.5 Kg

Dimensions L x W x H (mm) :

350 x 362 x 180

Power Supply :

a.c. 100V-240V, 50Hz/60Hz
