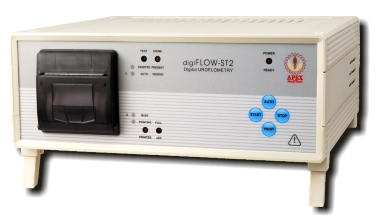

APEX digiFLOW Uroflowmetry System (ST2)

Technical Specifications

Control Unit

• Supply Voltage : 91-256V AC @ 50 Hz
• Power : 20 Watts (max)
• Dimensions : 265W X 112H X 235D mm
• Weight : 3.5 Kg
• Memory type : Volatile
• Memory capacity : One test (Last conducted test till the unit is powered)
• Flow Range : 0~50ml/sec.
• Volume Range : 0~750ml
• Test duration : 120sec.
• LED Indications : Auto/Start, Voiding, Urine present, Jar full, Printing
• Jar capacity : 2000ml, Use only supplied plastic jar.
• Key Board : Feather touch, sealed
• Cabinet shoes : Retractable for better viewing
• Sensor cable length : 4.5mtr.

Sensor Unit

.

• Dimensions : 200W X 100H X 200D mm
• Weight : 1.3 Kg.
• Sensor type : Load cell

Printer

.

• Printing method : Direct Thermal Printing
• Resolution / Print width : 203 DPI / 2” (50.8mm) approx
• Paper Loading : Easy Clam Shell type
• Sensor : Paper out detection and indication
• Cutter : Manual
• Paper : digiFLOW ST2 Premium printer paper

Report

.

• Printing time (one copy) : 30 seconds (approx.)
• Graphical data : Flow in ml/sec., Volume in ml.
• Tabular data : Volume Voided, Peak flow, Voiding time, Flow time, Delay, Time to peak, Intervals and Average flow rate.
• Number of copies : Single or multiple (as many as needed before starting the next test or switching off the system).
• Customised letterhead : Optional
