Dermatome

Aygun Surgical Intruments

Aygun Surgical Instruments

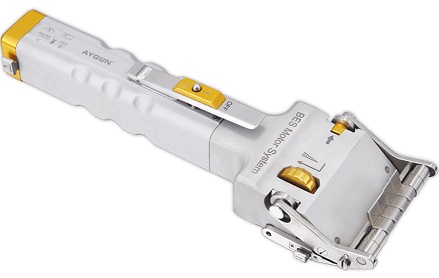

Dermatome is a device used for skin transplantation.

It can be used with three possible technologies: battery, electro-motor and pneumatic

  • User friendly, battery powered high torque motor design.
  • No need to connect electric supply or compressed air.
  • Removable special batteries make steam sterilization possible.
  • Ergonomic and weight balanced design make it easy to handle.
  • 8 flaps give the ability to adjust cutting width from 9.75 mm to 78 mm.
  • Easy blade change mechanism designed to insert the blade only one side thus uncorrect blade isertion is avoided.
  • Cutting speed can be adjusted by only one finger.
  • Safe lock mechanism prevents from unwanted operation of the motor.

Cutting speed adjust button with safe lock.

Dermatome Cutting Thickness

Level

mm

inch

1

0.17

0.006

2

0.34

0.013

3

0.51

0.020

4

0.68

0.026

5

0.85

0.033

6

1.02

0.040

7

1.19

0.046

AYGÜN, one of the leading establishment of Turkey in the medical industrial field, starting from neurosurgical field since 1988, at the end of its constantly R&D researches, has accomplished the production of instruments for all surgical branches. Along with meeting a large part of Turkey’s requirements, it proves itself as an expert in the field with the products offered to the world market. With present catalogues that include standard products and the special products formed on the request of the doctors including approximately 22.000 different types of instruments produced by AYGÜN. Besides being a manufacturer, it is also a designer firm. Besides increasing its capacity, AYGÜN, in its new production plants constructed in the Organized Industrial Area of Samsun, aims to present the different models of products to the medical community.

8 flaps give the ability to adjust cutting width from 9.75 mm to 78 mm.

Dermatome

  • hree possible technologies: Battery, Electro-motor, Pneumatic.
  • User friendly, battery powered high torque motor design.
  • No need to connect electric supply or compressed air.
  • Removable special batteries make steam sterilization possible.
  • Ergonomic and weight balanced design makes easy to handle.
  • 8 flaps gives the ability to adjust cutting width from 9.7 mm to 78 mm.
  • Easy blade change mechanism designed to insert the blade only one side thus uncorrect blade isertion is avoided.
  • Cutting speed can be adjusted by only one finger.
  • Safe lock mechanism prevents from unwanted operation of the motor.

Skin Graft Mesher

  • Single cutter cuts skin graft into geometrical shaped mesh & enlarge skin surface.
  • Graft expansion predetermined by graft carrying plates, eliminating need to change cutter during operation.
  • Continuous feed design prevents graft carrying plate from being loaded incorrectly and allow multiple plates to be used without interruption.
  • Graft thickness adjustment feature allow expansion on thin and thick grafts.
  • Easy availability of replacement parts.
