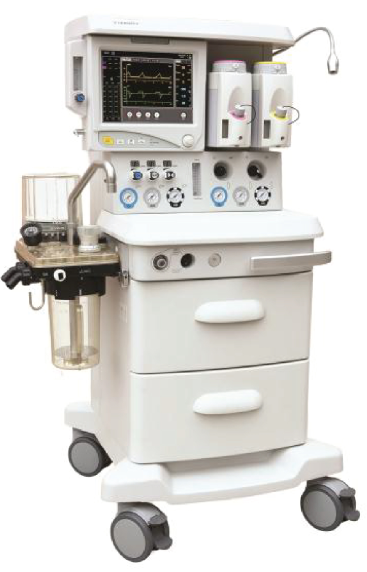

ENDO Anesthesia Machine, AM3

Spesifikasi :

Physical Specifications

• Dimension: L60OW740 H1368 mm
• Weight: 120kg
• Screen: 12 inch TFT touch screen
• Casters: 10 cm diameter, with individual locking brakes at front casters
• Two drawers

Electronic Specification

• Power supply: AC100240V±10%, 50/60Hz±1%
• Battery backup: 4 hours
• Power consumption: is less than 75VA
• Top light

Pneumatic Specification

• Pipeline gas input: 02/N20/AIR and supplement O2 supply, input pressure: 0.28MPa0.6MPa
• Cylinder gas input (optional): Pin indexed yokes for 02, N2O and AIR.
• Pressure gauge: 3 nos. for pipeline. 3 nos. for cylinder
(Optional)
• O2 controls:
• Method: Proportionate decrease of N2O with reduction in 02 flow
• 02 supply failure alarm: 02 pressure lower than 0.14MPa
• N2O cut off: N2O cutoff with loss of O2 pressure, supply failure alarm when is less than 200KPa.
• O2 flush: 2575u/min
• Auxiliary 02 flowmeter: 015L/Min, flow tube indicator.
• Flowmeters: Electronic flow measurement with both LED display and digital display on screen
• Operational modes: Closed and Semi-closed circuit system.
• Hypoxic guard system: Mechanical type, provides a nominal minimum 25% concentration of oxygen in O2/N20 mixture
• ACG0O: ISO 22 mm OD and 15 mm ID, allows for using third party's semi-open circuit
• CO2 absorbent canister: Quick release type, with volume 1.5L Automatic CO2 by-pass capability
• Bag/ventilation switch: switch for manual/spontaneous ventilation and mechanical ventilation.
• Integrated Adjustable Pressure Limiting (APL) valve: is less than or equal to 6KPa
• AGSS (optional): Passive Anesthetic Gas Scavenging System

Vaporizer

• Dual positions.
• Mounting: Tool-free installation Selectatec compatible with interlock.
• Agent type: Sevoflurane, Halothane, Isoflurane and Enflurane.
• Filling type: Pour-fill, Easy-fill and Quick-fill.

Ventilator Parameter

• Patient type: Infant, pediatric and adult
• Driven mode: Pneumatically driven electronically controlled
• Ventilation mode: VCV, PCV, SIMV-V, SIMV-P, PSV, STANDBY, Manual/Spontaneous
• Tidal volume (VT): 20ml1500ml
• Pressure (Pinspired) range: 570 cmH20
• Pressure (limit): 5 - 100cmH2O
• Pressure support: 560 cmH2O
• Electronic PEEP: OFF, 3 39 cmH20
• Trigger: Flow and pressure trigger.
• Frequency (f): 0100bpm, SIMV frequency: 460bpm
• EE ratio: 10:11.10
• Inspiratory pause: 0 60% of inspiratory time
• Inspiratory time: 0.555

Ventilator Monitored Values

• Tidal volume (VTI & VTE): 02000 ml
• Minute volume: (100 L Breathing rate: 000 1bpm Ppeak: -20·100 cmH2O Fi02: 21100%
• Waveform: P-T, F-T, CO2-T (Optional).
• Loop: F-V, V-P
• Other Monitored: Pmean, PEEP, Pplat, Pmin, MVspont, Ratespont, Cdyn, Sp02 (optional), Pulse (optional), EtCO2 (optional), InCO2 (optional), N2O concentration (optional), Anesthetic agent concentration (optional), Flow of 02/N20/Air, Total flow

Alarms

• 3 level visible audible alarm
• High & low limitation for: Pressure, Munite volume, Breathing rate, Fi02, Tidal Volume, Sp02 (optional), Pulse (optional), EtCO2 (optional),
• Apnea time, Sustained airway pressure, Alarm mute, AC off, Battery low & exhausted, Alarm log, Alarm silence
