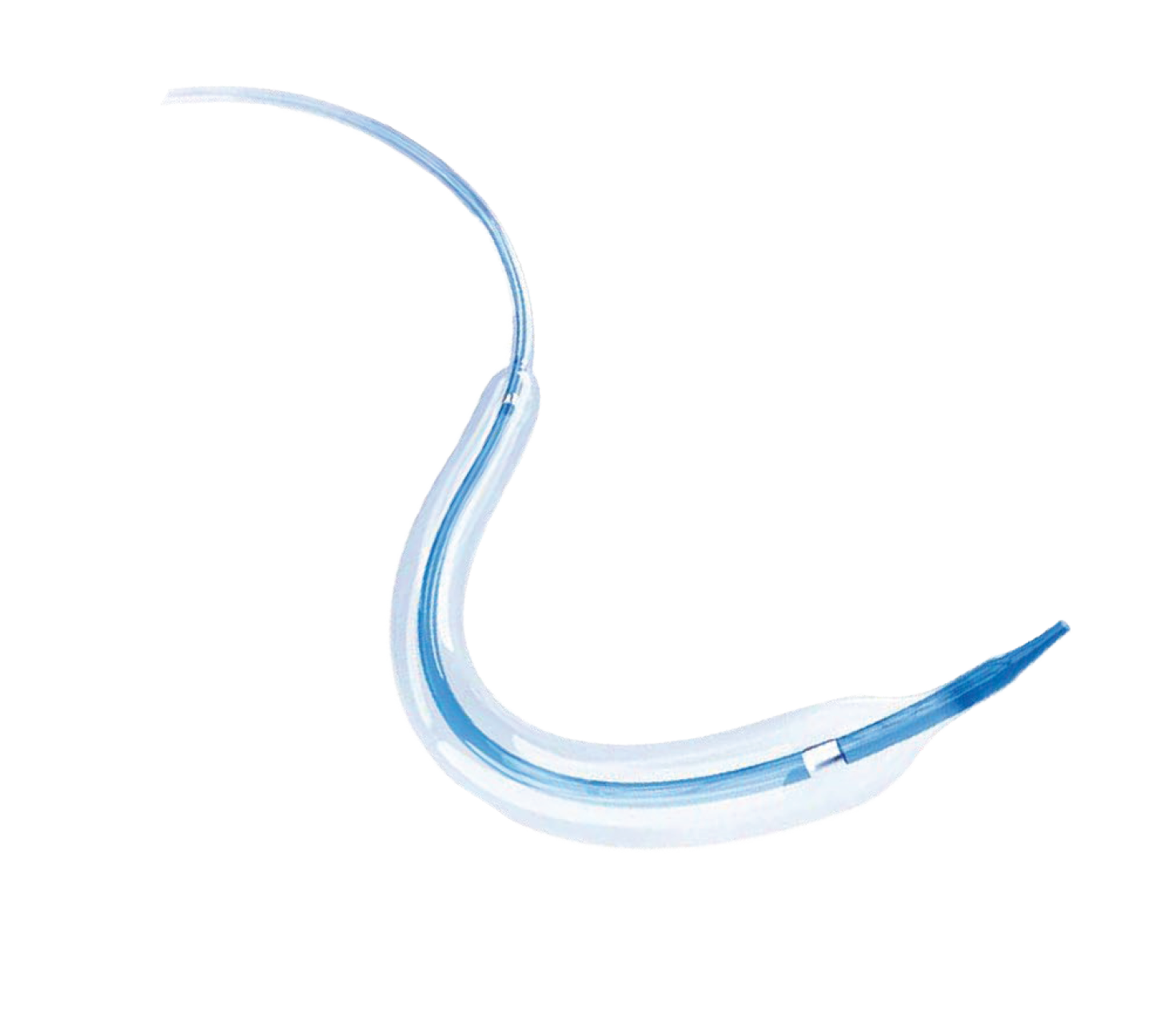

ENDO Coronary Dilatation Catheter

ENDO Coronary Dilatation Catheter
ENDO Coronary Dilatation Catheter

Features

  • Performance for kissing balloon under 6F guiding catheter.
  • Patented hydrophilic coating on distal shaft and Hypotube proximal shaft provide good deliverability
  • Three-directional memory folding of the balloon allows of size minimization with great withdrawal capability, and ensures the good performance of repeated dilatation
  • Soft tapered tip provides smooth transition from guidewire to balloon catheter to avoid “fish mouth”, and minimize the vessel damage.
  • Short shoulder design at both ends of the balloon ensures the precise dilatation, and reduces the damage to normal vessel next to the lesion.

Technical Parameters

Catheter DesignRapid Exchange
Balloon ComplianceSemi-compliant
Marker2
Distal Shaft O.D.2.7F
Proximal Shaft O.D.1.9F
Tip Profile0.017"
Minimum Guiding Catheter CompatibilityNo less than 5F (0.056")
Guide Wire Compatibility0.014"
Effective Length142cm
Nominal Pressure8 atm (2.25mm-3.0mm) / 6 atm (3.25mm-4.0mm)
Rated Burst Pressure16 atm (2.25mm-3.75mm) / 14 atm (Ø4.0mm)

Ordering Information

Balloon Diameter (mm)Balloon Length (mm)
8101215202530
2.5ENDO LPCRX 25008ENDO LPCRX 25010ENDO LPCRX 25012ENDO LPCRX 25015ENDO LPCRX 25020ENDO LPCRX 25025ENDO LPCRX 25030
2.75ENDO LPCRX 27008ENDO LPCRX 27010ENDO LPCRX 27012ENDO LPCRX 27015ENDO LPCRX 27020ENDO LPCRX 27025ENDO LPCRX 27030
3.0ENDO LPCRX 30008ENDO LPCRX 30010ENDO LPCRX 30012ENDO LPCRX 30015ENDO LPCRX 30020ENDO LPCRX 30025ENDO LPCRX 30030
3.5ENDO LPCRX 35008ENDO LPCRX 35010ENDO LPCRX 35012ENDO LPCRX 35015ENDO LPCRX 35020ENDO LPCRX 35025ENDO LPCRX 35030
4.0ENDO LPCRX 40008ENDO LPCRX 40010ENDO LPCRX 40012ENDO LPCRX 40015ENDO LPCRX 40020ENDO LPCRX 40025ENDO LPCRX 40030
