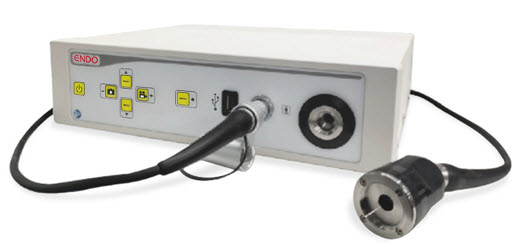

Camera System Integrated With Light Source ENDO EI.EC14

Camera System Integrated With Light Source ENDO EI.EC14
Camera System Integrated With Light Source ENDO EI.EC14
Spesifikasi EI.EC14
Data Umum
Tegangan saluran100-240 VAC
Persyaratan daya95VA
Sekering listrikSekering, 5x20mm, inert 3.15AH, 250V dengan kapasitas switching yang tinggi (Ia = 1500A)
Dimensi (LxTxD)Unit control: 295 x 128 x 278 mm
Camera head tanpa tombol: ± Ø36.5 x 65 mm
Camera head dengan tombol: ± Ø38 x 79 mm
BeratUnit control: 5kg
Camera head tanpa tombol: 150g
Camera head dengan tombol: 180g
Light Source
Lightsource: LEDSatuan LED; sebanding 50W
Kamera
Sensor gambar1/3” MOS
System TVDihubungkan pada 50/60 Hz
Resolusi TV1920 x 1080 pixel (Full HD)
Resolusi gambar>900 TV lines; horizontal
Rasio indeks16:09
Sensitivitas minimal<3lux (1/1.4)
Koneksi
Output video digital / Koneksi lainnya1x HDMI/DVI
1x PS2 (keyboard)
1x Remote IN (footswitch)
1x Remote OUT (Videoprinter, Videorecorder, …)
1x RJ45 (Service interface)
Klasifikasi / Kesesuaian
Kelas keselamatan1
Bagian aplikasiBF
