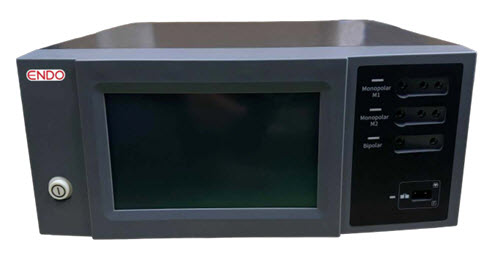

ENDO Electrosurgical, EI.ESU8
| Spesifikasi | |
| Nilai tegangan | 100-240V~ |
| Frekuensi | 50Hz / 60Hz |
| Konsumsi daya | 800VA |
| Frekuensi | 333~727kHz |
| Frekuensi pengulangan | 23~33kHz |
| Ukuran | 390x395x160mm |
| Berat | 11kg |
| Suhu operasi | 10°C hingga 40°C |
| Suhu penyimpanan | -10°C hingga 60°C |
| Kelembaban | 20% hingga 95% RH |
| Ketinggian operasi | 700~1060mbar |
| Siklus operasi | 10 dtk ON 30 dtk diam |
| Spesifikasi Output | ||
| Cut | Pure | 400W / 500Ω |
| Blend 1 | 250W / 400Ω | |
| Blend 2 | 200W / 400Ω | |
| Blend 3 | 150W / 400Ω | |
| Coagulator | Contact | 120W / 300Ω |
| Spray | 100W / 500Ω | |
| Argon | 100W / 500Ω | |
| Soft | 100W / 50Ω | |
| Bipolar Cut | Cut | 120W / 500Ω |
| Blend | 100W / 500Ω | |
| Bipolar Coag | Standard | 100W / 100Ω |
| Auto Start | 100W / 100Ω | |
| Forced | 80W / 100Ω | |
| Endo Cut | Polypectomy |
Maks. Daya Output (fase cut): 350W pada 500Ω Maks. Daya Output (fase Coag): 100W pada 50Ω Nilai Frekuensi: 350kHz |
| Mode Option | ||
| Opsi 1, 3 | Bipolar TURP |
Maks. Output Power (TURP cut): 360W pada 200Ω Maks. Output Power (TURP coag): 180W pada 50Ω Nilai Frekuensi : CUT:333kHz, COAG:500kHz Faktor Puncak : 1.4 |
| Opsi 2, 3 | Bipolar Coag Seal |
Maks. Output Power: 300W pada 25Ω Nilai Frekuensi : 400kHz Faktor Puncak : 1.4 |
Output Parameter

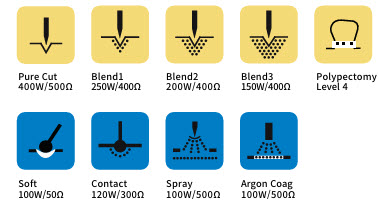

Mode standard - MONOPOLAR
Mode standard - BIPOLAR
Mode option - 1
Mode option - 2
Mode option - 3
