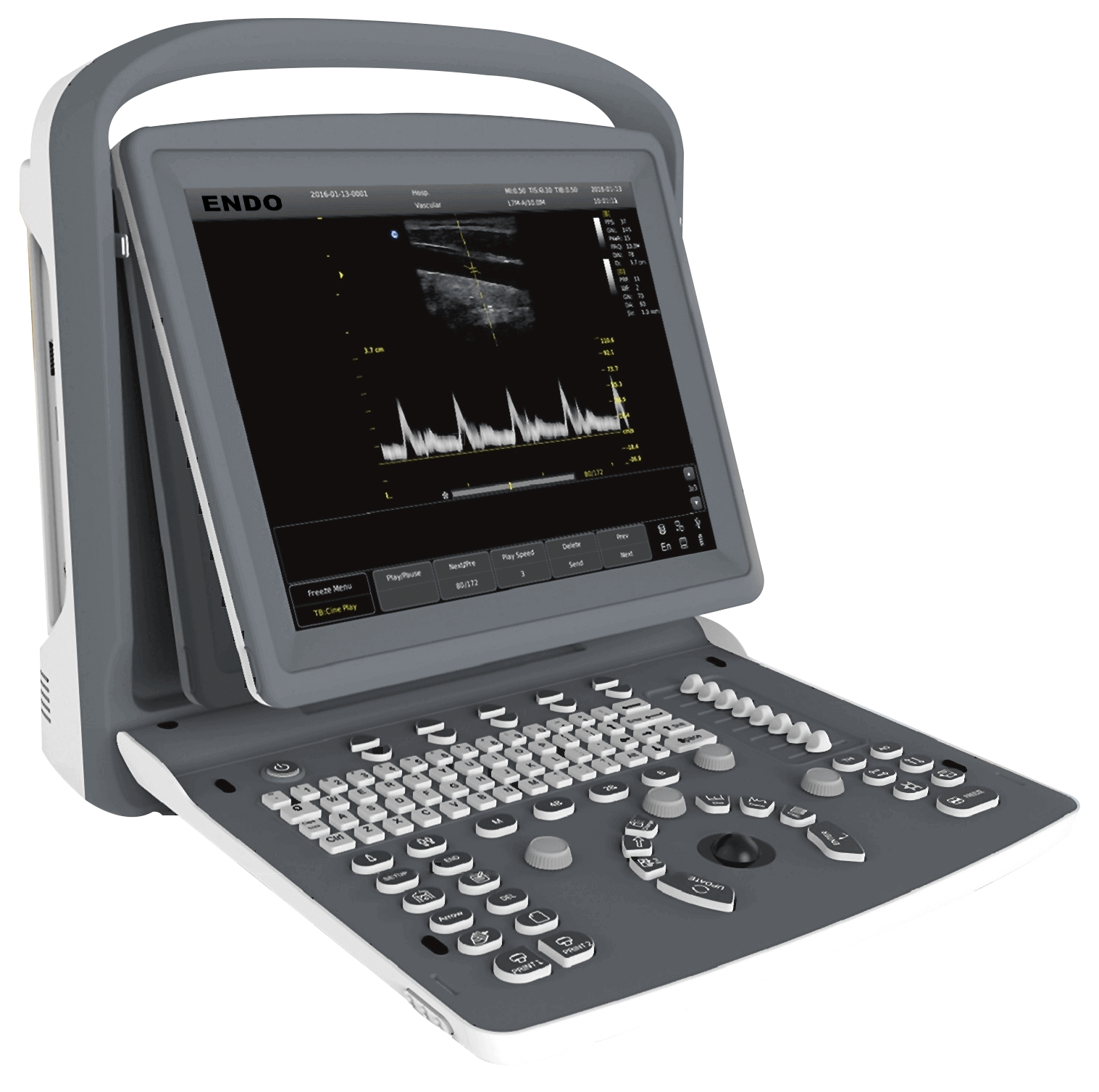

ENDO USG, Ultrasound Diagnostic System EI.USGBW

ENDO USG, Ultrasound Diagnostic System EI.USGBW

Specifications :


Abdomen,OB/GYN,Vascular, Small parts(breast, testicles, thyroid),Musculoskeletal Conventional & Superficial, Pediatric, Basic Cardiac

Imaging technologies

i-lmage,SRA,Compound imaging,THI

Display Modes

B, B/B, 48, M, B/M,PW

Gray Scale

256 Levels

Scanning Depth

240mm Max (depend on the probe types)

Probe Frequency

2.5 MHz - 11.0 MHz (Depend on the probe)

Cine Loop

256 frames


4 steps

Software Packages

Dedicated measurement package:General ,OB/GYN, URO, Cardiac,vascular,small parts

Archives Management

Patient information management, images record, exam report.

Power Supply

AC 100V-240V, 50Hz- 60Hz

Standard Configuration

1 probe connectors, 3 USB ports,VGA port ,Video port ,LAN port, Full Screen Display Mode,i-lmage,Chroma ,SRA,Compound imaging,THI, 8G memory card,PW Mode,Built-in Battery


2 probe connectors, DICOM 3.0, Water-proof keyboard cover, Canrying Case (BG-100 ), Cart TR 9000 ,Support PC Printer ,Video Printer

Advanced Imaging Technologies

  • Rotatable LED ('-30') : tailer to different viewing angles
  • Ultra-compact & Ultra-light
  • Easy to carry
  • Keyboard : For easy and quick access
  • Dedicated cart TR 9000
  • Streamlined workflow
  • The latest platform & more advanced chip-set:brings you better image quality and features at less cost in a more compact box
  • Support PC printer, reduce investment & day to day paper cost
  • 8G memory card
  • 320G harddisk (option)
  • Vehicular Charging
  • Advanced technologies : i-image (Intelligent image optimization), THI (Tissue Harmonic Image), SRA (Speckle Reduction Algorithm), Compound imaging
  • Full digital beam-former
  • Trapezoid
  • Automatic PW trace
  • Chroma
  • Full screen display mode
  • AIO (Automatic image optimization)
  • Less radiation
  • Less power consumption
  • Longer usage life:LED
  • Longer battery standby time: >2 hours

Great Image Quality
