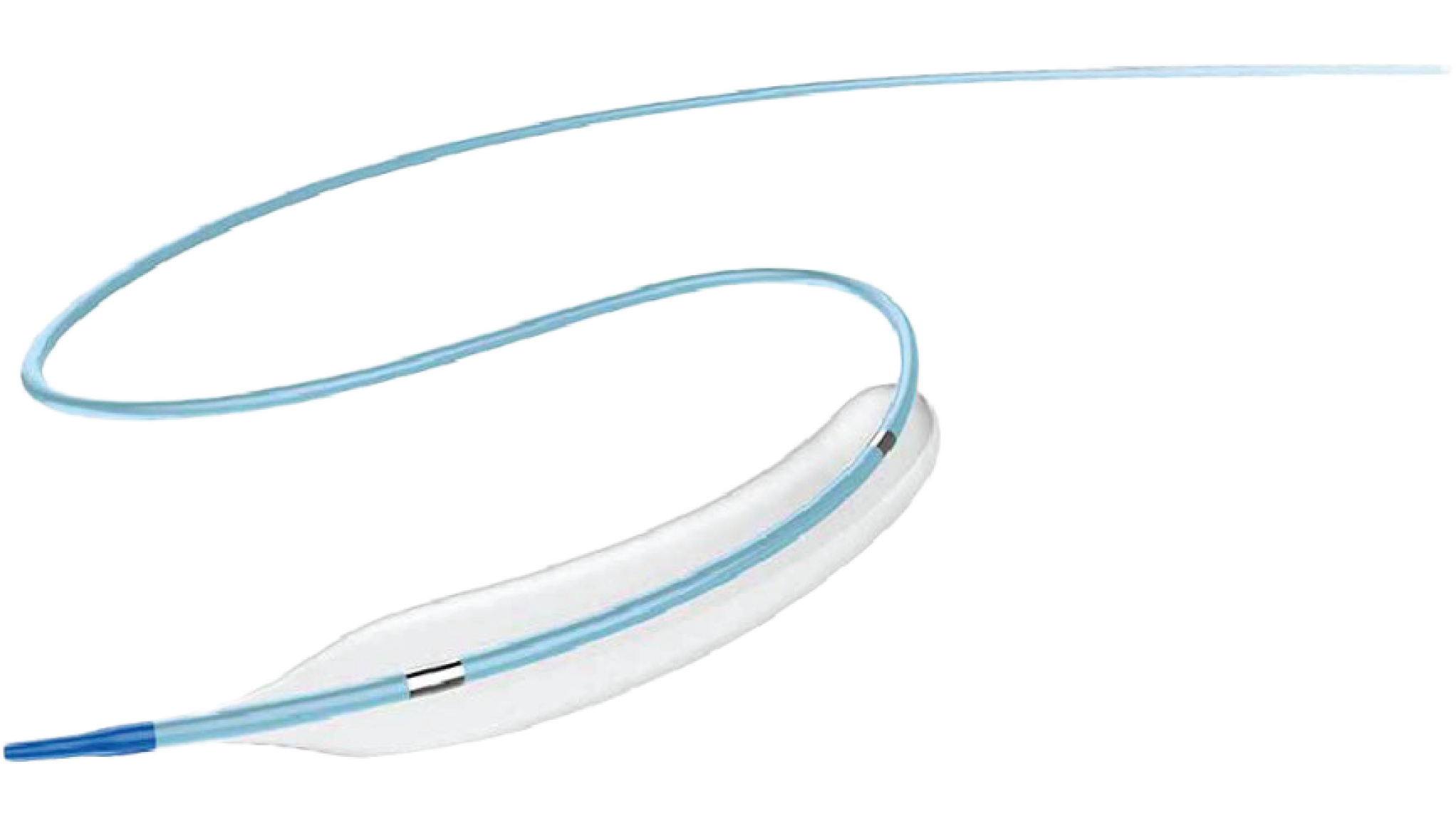

ENDO NC Coronary Dilatation Catheter

ENDO NC Coronary Dilatation Catheter
ENDO NC Coronary Dilatation Catheter

Features

  • Strong radial strength with high RBP (22 atm) contributes to excellent stent apposition for post-dilatation
  • Patented hydrophilic coating on distal shaft provides good deliverability
  • Three-directional memory folding of the balloon allows of size minimization with great withdrawal capability, and ensures the good performance of repeated dilatation.
  • Soft tapered tip provides smooth transition from guidewire to balloon catheter to avoid “fish mouth”, and minimize the vessel damage
  • Short shoulder design at both ends of the balloon ensures the precise dilatation, and reduces the damage to normal vessel next to the lesion

Technical Parameters

MaterialNylon
Catheter DesignRapid Exchange
Balloon ComplianceNon-compliant
Marker2
Distal Shaft O.D.2.7F
Proximal Shaft O.D.2.3F
Tip Profile0.018"
Minimum Guiding Catheter CompatibilityNo less than 5F (0.056")
Guide Wire Compatibility0.014"
Effective Length135cm
Nominal Pressure14 atm
Rated Burst Pressure22 atm

Ordering Information

Balloon Diameter (mm) Balloon Length (mm)
6 8 10 12 15 20 25 30
1.5 ENDO LPNRX15006 ENDO LPNRX15008 ENDO LPNRX15010 ENDO LPNRX15012 ENDO LPNRX15015 ENDO LPNRX15020 ENDO LPNRX15025 ENDO LPNRX15030
2.0 ENDO LPNRX20006 ENDO LPNRX20008 ENDO LPNRX20010 ENDO LPNRX20012 ENDO LPNRX20015 ENDO LPNRX20020 ENDO LPNRX20025 ENDO LPNRX20030
2.25 ENDO LPNRX22006 ENDO LPNRX22008 ENDO LPNRX22010 ENDO LPNRX22012 ENDO LPNRX22015 ENDO LPNRX22020 ENDO LPNRX22025 ENDO LPNRX22030
2.5 ENDO LPNRX25006 ENDO LPNRX25008 ENDO LPNRX25010 ENDO LPNRX25012 ENDO LPNRX25015 ENDO LPNRX25020 ENDO LPNRX25025 ENDO LPNRX25030
2.75 ENDO LPNRX27006 ENDO LPNRX27008 ENDO LPNRX27010 ENDO LPNRX27012 ENDO LPNRX27015 ENDO LPNRX27020 ENDO LPNRX27025 ENDO LPNRX27030
3.0 ENDO LPNRX30006 ENDO LPNRX30008 ENDO LPNRX30010 ENDO LPNRX30012 ENDO LPNRX30015 ENDO LPNRX30020 ENDO LPNRX30025 ENDO LPNRX30030
3.25 ENDO LPNRX32006 ENDO LPNRX32008 ENDO LPNRX32010 ENDO LPNRX32012 ENDO LPNRX32015 ENDO LPNRX32020 ENDO LPNRX32025 ENDO LPNRX32030
3.5 ENDO LPNRX35006 ENDO LPNRX35008 ENDO LPNRX35010 ENDO LPNRX35012 ENDO LPNRX35015 ENDO LPNRX35020 ENDO LPNRX35025 ENDO LPNRX35030
3.7 ENDO LPNRX37006 ENDO LPNRX37008 ENDO LPNRX37010 ENDO LPNRX37012 ENDO LPNRX37015 ENDO LPNRX37020 ENDO LPNRX37025 ENDO LPNRX37030
4.0 ENDO LPNRX40006 ENDO LPNRX40008 ENDO LPNRX40010 ENDO LPNRX40012 ENDO LPNRX40015 ENDO LPNRX40020 ENDO LPNRX40025 ENDO LPNRX40030
4.5 ENDO LPNRX45006 ENDO LPNRX45008 ENDO LPNRX45010 ENDO LPNRX45012 ENDO LPNRX45015 ENDO LPNRX45020 ENDO LPNRX45025 ENDO LPNRX45030
