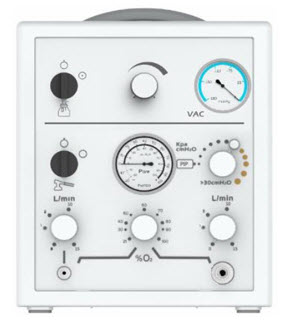

ENDO T-Piece Infant Resuscitation System, ENDO TRS
| Spesifikasi T-Piece Infant Resuscitation System | |
| Physical Characteristics | |
| Size | 272mm × 167mm × 336mm |
| Weight | 6.7 kg |
| Operation Environment | |
| Working Temp | 18~40°C |
| Humidity | 15%?80% |
| Power Supply | 100-240V~, 50/60Hz±1Hz |
| Pressure range at inlet | 280~600kPa |
| IP Code | IPX4 |
| Interfacing | |
| O2 | O2 |
| AC power input | AC power input |
| Air input | Air input |
| Negative pressure inlet | Negative pressure inlet |
| PEEP | |
| PIP≤30 cmH2O | 5 L/min : (0~10) cmH2O 8 L/min : (0~21) cmH2O 10 L/min : (0~22) cmH2O 15 L/min : (0~24) cmH2O |
| 30 cmH2O < PIP ≤ 45 cmH2O | 5 L/min : (0~10) cmH2O 8 L/min : (0~24) cmH2O 10 L/min : (0~34) cmH2O 15 L/min : (0~35) cmH2O |
| Resuscitation | |
| Oxygen and air supply pressure | 45±5cmH2O |
| Rang of cylinder pressure gauge | -20~100 (x100Pa (or cmH2O)); Accuracy: ±2.5% full scale |
| Sputum suction pressure | -150mmHg~0mmHg; Accuracy: ±5% |
| Sputum suction flow | 0 -20 L/min |
| Rang of negative pressure gauge | -180~0mmHg; or -24~0kPa); Accuracy: ±5% |
| Oxygen concentration range | 21%~100%; Accuracy : ±3% |
| Oxygen therapy range | 0~15 L/min |
| Accuracy | ±0.5 L/min (0 L/min~5L/min) ±1.5 L/min (5 L/min~10L/min) ±2 L/min (10 L/min~15L/min) |
| Continuous positive pressure flow range | 0~15 L/min |
| Range of Airway pressure gauge | -20~100 cmH2O |
| Measurement accuracy | ±5% full scale |
| Maximum PIP | 45 cmH2O ±0.5 cmH2O |
| PIP values for anti-misoperation | 30±0.4 cmH2O |
| Mechanical alarm | When the pressure difference between oxygen and air is above 140kPa ± 20kPa or if one of the two gases breaks down, it will alarm. |
