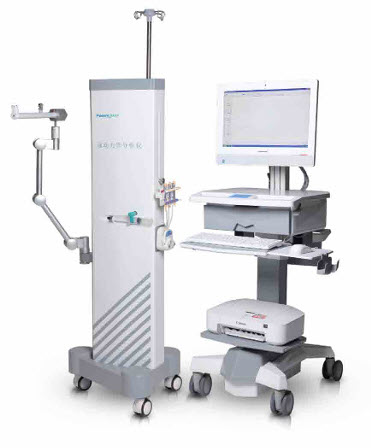

Potent Urodynamic Analyzer System

Potent Urodynamic Analyzer System
Potent Urodynamic Analyzer System

Urodynamics is a subdiscipline of urinary surgery. It mainly studies the function and mechanism of urinary tract, and pathophysiology changes of voiding dysfunction. Nowadays, urodynamic analysis is a common means for analysis of urinary surgery. It gradually replaces subjective diagnosis since 1980s and provides scientific basis for diagnosis and treatment of common diseases of urinary surgery.

Applications

  • Measurement programs according to ICS standards
  • Pressure-flow-measurement
  • Urethra-pressure-profiles
  • Uroflowmetry
  • Cystometry
  • Leak point pressure
  • Animated biofeedback
  • EMG (Electromyography)

Features

  • Full range of analysis
  • Alarm doctor automatically when urinary bladder pressure > 40cmH?O
  • Stop filling automatically when urinary bladder pressure > 150cmH?O
  • Measures bladder contractility non-invasively
  • Reduces the number of cystometry tests and associated risks
  • Clinically proven
  • Saves time and money
  • Increases the success rate from TURP
  • Powerful data management system
  • Analysis at the touch of a button
  • Modular pump and puller
  • Wireless uroflowmeter
  • Updatable to video urodynamic system

Technical Data

Items

Details

Uroflowmetry measuring range

a) Flow: 0mL~1000mL, Error range ±2%
b) Urination time: 0s~240s, Error range ±1%
c) Average urinary flow rate: 0mL/s~50mL/s, Error range ±5%

Pressure measuring range

Pressure: -50cmH?O (-4.9kPa) ~ 200cmH?O (19.6kPa)
Error range ±3%

Dragger

a) Length: ?280mm
b) 4 Speeds: 0.5mm/s, 1.0mm/s, 2.0mm/s, 4.0mm/s, Error range ±3%

Filling pump

Range of filling rate: 2mL/min~10mL/min (1mL/min each time)
10mL/min~80mL/min (5mL/min each time)

Syring pump

Injection speed: 2mL/min~5mL/min (1mL/min each time), error range ±3%

EMG testing

a) Range for response: 20?V~1mV
b) Length of electrode wire: ?180cm

Compliance

All the tests comply with standards of the ICS
Achieved certificate of ISO13485
One of the Only Two manufacturers of Urodynamic Systems in China
