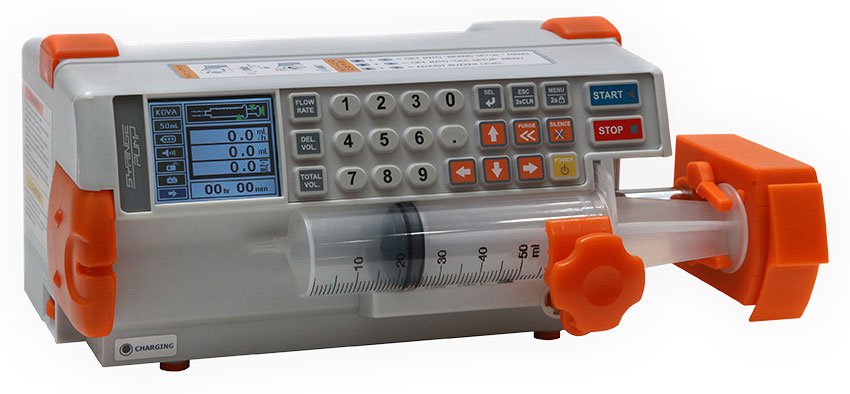

ENDO Syringe Pump EI.SP

ENDO Syringe Pump EI.SP

Faster, Easier and Precise

  • Numerical keypad - Easy and fast way to setup
  • Simple, fast and convenient syringe installation
  • Color LCD - With color LCD, complete information is displayed in more detail.

Standard Features

  • Self-testing - Every time the unit is turns on, self testing is proceeded.
  • Auto-syringe detection - Detect syringe size automatically.
  • Shortcut key - Syringe brand set, Occlusion set, Buzzer level set.
  • K.V.O.(Keep Vein Open) - When the delivery volume has been reached, flow rate turns into K.V.O. rate (adjustable from 1ml/h to 10ml/h) automatically.
  • Keypad lock function - Keypad can be locked with or without password.
  • Infusion Setup - Flow rate/ Delivery volume/ Infusing time.
  • Retain Memory - Last setting value will be retained.
  • Remaining Time Display.
  • Alarm Repeat Function.
  • Open system - Up to 10 syringe brands can be calibrated in single unit.
  • Buzzer level - 3 steps.
  • Occlusion level - 9 steps (3.8 ~ 19.3 psi).
  • Purge rate - Adjustable (0.1 ~ 1200 mL/hr).
  • Bolus rate - ON/OFF, Adjustable (0.1 ~ 1200 mL/hr, 0.1 ~ 1000mL).
  • Anti bolus - Reduce significantly bolus after occlusion release. (ON/OFF).
  • History call back - Call back last 10 infusion data.

Optionals

  • Dosage mode (Body weight mode) - Automatically calculate and set the proper flow rate when the dose rate, body weight, drug mass and solution volume are entered.
  • Unit setup for Dosage mode - mL/hr, mg/kg/hr, mg/kg/min, µg/kg/hr, µg/kg/min
  • Nurse call - Each unit can be connceted with nurse call system (DC 24V, 0.5A).
  • Profile function - Program infusion condition(flow rate, delivery volume, delivery time) differently for each hour, up to 24hours.
  • Drug labelling
  • Central system - Connect with main PC for monitioring.
