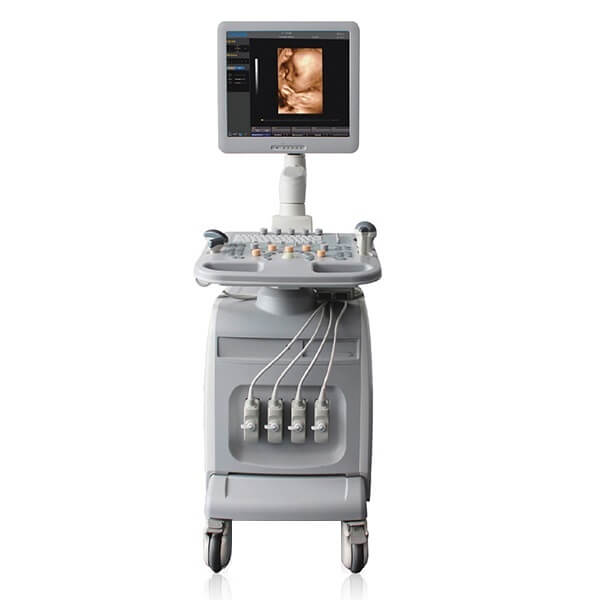

ENDO EI-3, 4D USG

ENDO EI-3, 4D USG
ENDO EI-3, 4D USG

The revolutionary ENDO EI-3 provides you outstanding 2D images and fast 4D volume images, while the streamlined workflow makes your busy practices much easier and efficient.
The multi-purpose user presets, streamlined measurement& report system, built-in EasyView image archieve system, quick image storage/retreive/transfer, one-button direct print, 4D direct burning to CD makes the complete workflow more perfect than what you can dream of.

Specifications :

Options :

  • 3.SMHz Convex probe
  • 7.5MHz Linear probe
  • 6.0MHz Transvaginal probe
  • 7.0MHz Transvaginal probe(180°)
  • 3.0MHz Micro-convex probe(adult Cardiac)
  • 5.0MHz Pedriatic probe
  • 4D package: induding 4.0MHz 4D volume probe, 4D software, and 4D hardware module
  • Video Printer: SONY UP897MD
  • PC Printer (any USB PC printer)
  • DI COM 3.0
  • i-Image: Image optimization software
  • Biopsy kit:for convex, linear,TV probe
  • Foot-Switch

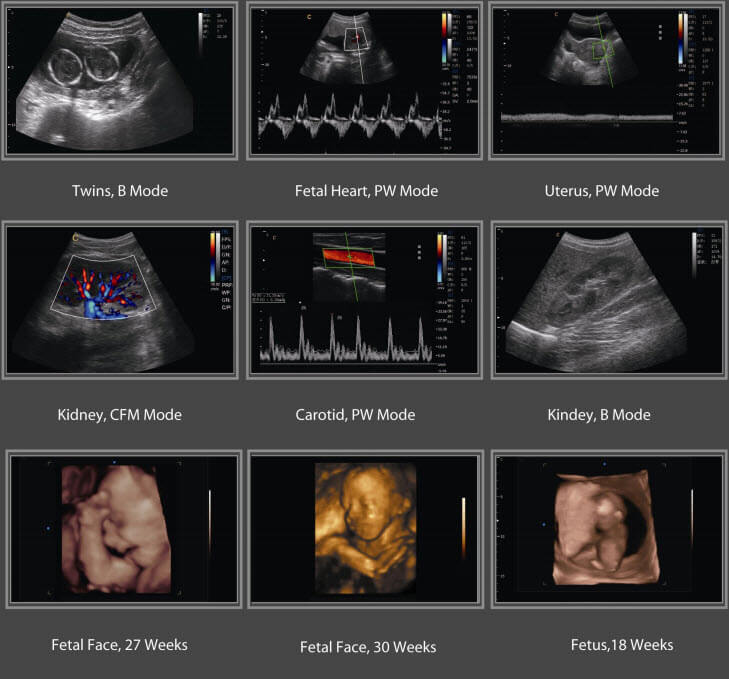

Imaging modes :

  • B, 2B, 4B, B/M, M
  • CFM
  • PW Mode
  • Power Doppler/Directional PD
  • Duplex
  • Trapezoidal
  • Real-time 4D (option)
  • Chroma B/PW

Measurement & Report packages :

  • OB & GYN
  • Vascular
  • Urology
  • Small parts
  • Basic cardiac

Probes :

  • 3.5MHz Convex probe
  • 7.5MHz Linearprobe
  • 6.0MHz Transvaginal probe
  • 4.0MHz 4D Volume Probe
  • 7.0MHz Transvaginal probe(180°)
  • 3.0MHz Micro-convex probe(adult Cardiac)
  • 5.0MHz Pedriatic probe
  • Wideband, Multi-Frequency


Widely Clinical Applications :

  • Abdominal
  • Obstetrics
  • Gynecology
  • Vascular and Small parts
  • Pediatric
  • Urology
  • Musculoskeletal

Image Processing Technology :

  • THI
  • Speckle Reduction Algorithm (SRA)
  • Compound technology
  • i-Image : image optimization software

Standart Configuration

Main unit, 19'' LCD, 4 Probe Connectors, Hard disk(320 GB), DVD-RW, 6 USB Ports

Multi Beam Former Technology

  • Enchance signal processing speed
  • Enchance time resolution
  • Improve picture frame rate
  • Improve spatial resolution

Better 4D

Light probe :

Releases doctors from scanning fatigue

Smart function :

The latest technology: compound, i-image, SRA, etc. Provide super image

Quite Probe :

Vibration-free & Noise-free probe allows better care for mother and fetus

Fast speed :

4D volume rate reveals fetal movement in real time

ENDO EI-3, 4D USG
