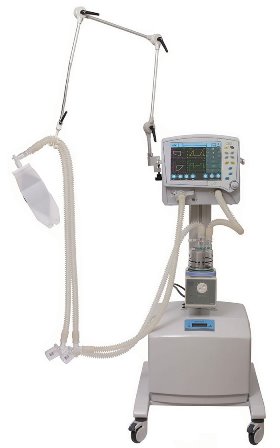

ENDO Ventilator SH300

ENDO Ventilator SH300

Pediatric through Adult ventilation,

a host of impressive features offers you intensive care.

Great Visibility

SH-300 is equipped with a large 10.4" full-color display. The high resolution display provides for a flexible graphics menu combining respiratory curves, loops, and numerical data of physiological parameters.

Assistant Functions

Inspiratory Hold

Convenience for taking X-ray picture of the patient during ventilation, availability for clinician to assess patient's static pulmonary mechanics.

Expiratory Hold

Accessibility for measuring intrinsic PEEP

100% FiO2

More effective support for suction

Manifold parameter selections

The manifold parameter selections are operated by means of a single ComWheel

Manual Inspiration

Availability for clinician to make prompt response to patient's inspiration need

Expiratory Valve

With heating function, the expiratory valve protects the device from condensed water, accuracy of the flow sensor is ensure.

Humidifier

Warm and humidify airflow with protection function, nine steps to control temperature.

Compressor

High quality medical compressor with low noise, compatible for most medical devices.

  • 10.4" TFT color screen
  • Easy setting by navigator wheel knob and touch key
  • Wide choice of ventilation modes including CPAP, APRV, BIPAP
  • Flow and pressure trigger
  • Static compliance and resistance monitor
  • PEEP, P-V loop, V-F loop
  • Three-level visual and audible alarm, with concise words describing problems
  • Advanced built-in electronic air-oxygen mixing device
  • Durable and accurate built-in flow sensor
  • Integrated expiration valve, easy to be sterilized
  • Backup apnea ventilation
  • Auto nebulizer
  • Built-in battery
  • CE certified

Available Modes

VCV Mode

In VCV mode, the ventilator delivers mandatory breath by setting tidal volume. When the ventilator detects patient's inspiratory effort, it delivers a patient-initiated mandatory (PIM) breathe. If the ventilator does not detect inspiratory effort, it delivers a ventilator-initiated mandatory (VIM) breath at an interval based on the set respiratory rate. Breaths can be pressure-triggered or flow-triggered in VCV mode.

PSV Mode

In PSV mode, inspiration is usually initiated by patient effort. Breaths are initiated via pressure or flow triggering. Clinician can also initiate a manual inspiration during PSV.

PSV Breaths

Controlled by pressure (preset PSV level + PEEP), Limited by pressure (preset PSV level + PEEP + margin), and Cycled by time (PSG Tmax) or flow (PSV Cycle)

SIMV Mode

SIMV is a mixed ventilation mode that allows both mandatory and spontaneous breaths. The mandatory breaths can be volume-based (SIMV-V) or pressure-based (SIMV-P), and the spontaneous breaths can be pressure-assisted. Clinician can select pressure-triggering or flow-triggering in SIMV.

APRV Mode

APRV is a time cycled pressure mode. In this mode, patient is allowed to breath spontaneously at two preset pressure levels. These are set using the Phigh and Plow controls. The maximum duration at each pressure during time cycling is set with the Thigh and Tlow controls. Additionally, CPAP can be added to improve comfort of patient during spontaneous breathing.
